When planning any kind of project using geographic information systems (GIS), it’s vital to understand foundational concepts. In this article, you’ll learn the essentials of scale and resolution in GIS.

Key Takeaways :

• We define scale and resolution in GIS.
• Learn how they influence map-making.
• Find out how scale and resolution affect maps in different industries.
• Read about best practices for GIS map scale and resolution.

When you’re using GIS software, the decisions you make about map scale and resolution will have a major impact on the usability of the maps you eventually produce.

Your choices about GIS map scale and resolution can result in maps that are precise, clear, and insightful—or they can lead to inaccurate, hard-to-understand maps and result in poor decisions.

You can set scale and resolution in GIS in many different ways, and there’s not one ‘correct’ method. What’s right for one project would be unsuitable for another. This is why it’s essential to understand these concepts, how they interact, and the nuances of their application.

More Key Concepts : Learn About Ground Resolution in GIS

What are scale and resolution in GIS?

In GIS, map scale refers to the ratio between map distance and real-world distance. It determines how much area is covered and how much detail is visible.

• Small scale : Represents large areas with less detail (e.g., a country map).
• Large scale : Represents smaller areas with more detail (e.g., a neighbourhood map).

Resolution in GIS refers to the level of detail captured in spatial data. There are three key types :

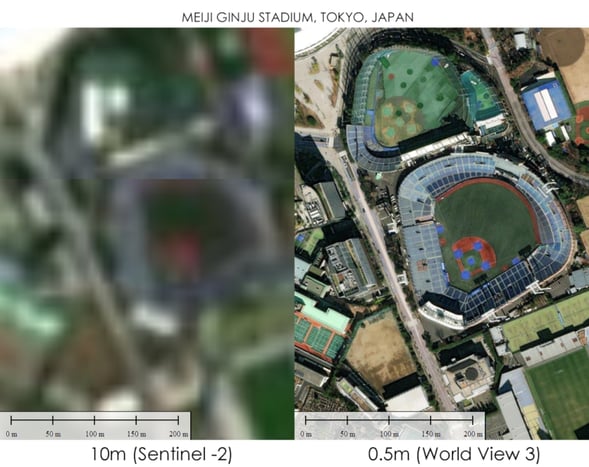

• Spatial resolution :  Determines the granularity of data. For example, LuxCarta’s high-resolution 3D maps allow telecom operators to identify obstacles, such as specific buildings or vegetation, that could hinder signal propagation.
• Spectral resolution :  Relevant in analyzing vegetation and materials, spectral resolution supports tasks such as monitoring changes in land use that could impact infrastructure projects.
•  Temporal resolution :  Key for time-sensitive projects, such as tracking infrastructure changes or evaluating seasonal impacts on agriculture.

How Are Scale and Resolution Related?

Although scale and resolution are distinct, they are contextually interrelated in GIS. Scale primarily governs the representation of real-world distances on a map, while resolution determines the smallest feature that can be distinguished. This relationship becomes crucial when combining datasets, such as satellite imagery and vector maps.

• For raster data (e.g., satellite imagery), resolution limits the detail visible at a particular scale. A high-resolution image might lose value when displayed at a small scale, as details become imperceptible.
• For vector data (e.g., topographic maps), scale affects how much detail is included in the representation. Resolution is less relevant here unless raster data is involved.

For example, while scale is often associated with cartographic maps and resolution with satellite images, combining them effectively in GIS workflows requires understanding their interplay. Selecting an appropriate balance ensures the map remains detailed and practical for its intended purpose.

Why Scale and Resolution Matter

The ultimate purpose of your maps should guide your choices about scale and resolution in GIS:

• Scale : ensures appropriate representation of project needs. For example, in the telecom industry, large-scale maps are critical for optimizing wireless network coverage in urban areas, while small-scale maps help with nationwide telecom infrastructure planning.
• Resolution : determines the level of detail available for analysis, with high-resolution data enabling granular insights. For instance, a telecom firm would want high spatial resolution when planning the location of 5G mmWave antennas. This would let them visualize individual buildings and identify places to install their kit.

Choosing the Right Scale and Resolution

Selecting the right scale and resolution in GIS depends on the project’s objectives. Here are some examples:

• Disaster response :  Following a significant tornado, a regional government would benefit from medium-scale maps with reasonably high resolution so they can visualize the extent of damage across the affected area.


• Telecommunications planning : Large-scale maps are invaluable for pinpointing ideal antenna locations and optimizing signal propagation amidst urban obstructions. High-resolution imagery can help identify specific places to install equipment.


• Regional solar mapping :  When identifying suitable locations for solar farms, an energy company would benefit from small-scale maps to explore large regions. They’d also need maps with reasonably high spectral resolution levels to identify open fields or empty wastelands.

Balancing Scale and Resolution in GIS

Balancing scale and resolution is a critical challenge in GIS. A map with a small scale but high resolution may overwhelm storage and processing capacities, while a large-scale map with low resolution may lack actionable insights.

For example :

• Small scale and high resolution : A small-scale national map with high spatial resolution might seem appealing, as it shows detail across the country. However, it would be unwieldy, use vast quantities of data, and be slow to load.


• Large scale and low resolution : A large-scale neighborhood map built on low spatial resolution imagery would be affordable but blurry and unclear. While the map’s large scale allows zooming in, it would fail to accurately depict features like building boundaries or roads.

Best Practices for Managing Scale and Resolution

Here are some general best practices:

• Define clear project objectives : Your GIS map needs to help end users perform specific tasks such as planning solar farms or locating 5G antenna sites. Keeping end-user goals in mind makes you more likely to create a useful map.


• Choose scales suited to the area of interest : GIS map scale should reflect the area being mapped. Small-scale maps like LuxCarta’s Region Planner work best at a country/region level, Urban Planner maps suit suburban areas or small towns, and 3D CityPlanner maps excel in dense urban areas.


• Ensure resolutions meet detail requirements :  Match spatial resolution to end-user needs.

  For example :


• 1-5m resolution :  for 5G network planning in dense urban areas.


• 10-50m resolution : for national-level electricity network monitoring.

Tools and Data for GIS Mapping

Understanding how scale and resolution influence maps in GIS is vital to creating effective and meaningful maps tailored to your project’s requirements.

At LuxCarta, we provide a comprehensive suite of geodata datasets designed to meet diverse needs from Region Planner for broad overviews to City Planner for detailed urban mapping. Whatever your project demands, our data and tools are here to support you.

Contact us today to discover how LuxCarta’s solutions can help address your GIS mapping needs.
